Ferroelectric stripe domains on PZT (AFAM)

MDT-file: Download

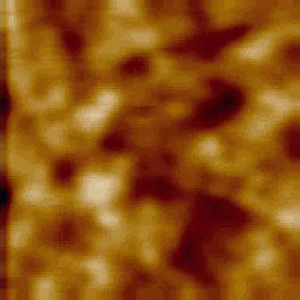

AFM Topography and Atomic Force Acoustic Microscopy(AFAM) images of PZT.

Sample courtesy of Prof. Walter Arnold, Fraunhofer Institute for Nondestructive Testing, Saarbruecken, Germany.


ferroelectric_stripe_domains_300a
ferroelectric_stripe_domains_300a
AFM. Semicontact mode.


size: 2.5x2.5x0.003 um
SPM principle: Intermittent contact mode
ferroelectric_stripe_domains_300
Ferroelectric stripe domains on PZT (AFAM)

Atomic Force Acoustic Microscopy(AFAM) image.

Stripe ferroelectric domain structure are clearly visible on AFAM image due to the difference in local Youngs moduli of domains of different polarization.
size: 2.5x2.5x0.003 um
