Nanotube-Polystyrene composite

MDT-file: Download

The 3D volume organization of conducting composites of polystirene and multiwalled carbon nanotubes (MWCNTs) and their volume conductivity distribution has been analyzed with nanometer resolution by means of conductive atomic force microscopy (C-AFM).

Images are obtained with SPM NTEGRA Tomo.

Image courtesy A. Efimov,  A. Alexeev, NT-MDT. Sample courtesy Dr. J. Loos, Dr. K. Lu, Dutch Polymer Institute, Eindhoven University of Technology.


cafm_300
cafm_300
C-AFM

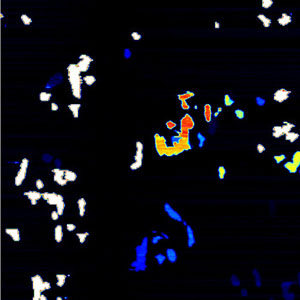

Electrical current distribution over composite slice.
Current range 100 – 800 pA.
size: 2x2 um
SPM principle: Spreading resistance imaging
fig3
3D view


size: 2x2 um
SPM principle: Spreading resistance imaging
