Ferroelectric Domains in ErMnO3

ErMnO3, z-cut, single crystal Ferroelectric Domains in ErMnO3 Bright and dark areas correspond to positively and negatively polariszed domains. The favor of the negatively polarzied domains is due to oxygen loss of the surface during the growth. The meeting point of always 3 bright and 3 dark domains are topological defects and named ferroelectric vortices.
Device: NTEGRA Prima
Tip: MikroMasch NSC35 medium
Sample Courtesy: Prof. Manfred Fiebig, Multifunctional Ferroic Materials, Materials Department, ETH Zurich
Image Courtesy: Martin Lilienblum, Multifunctional Ferroic Materials, Materials Department, ETH Zurich

ferroelectric_domains_in_ermno3_2l
ferroelectric_domains_in_ermno3_2l

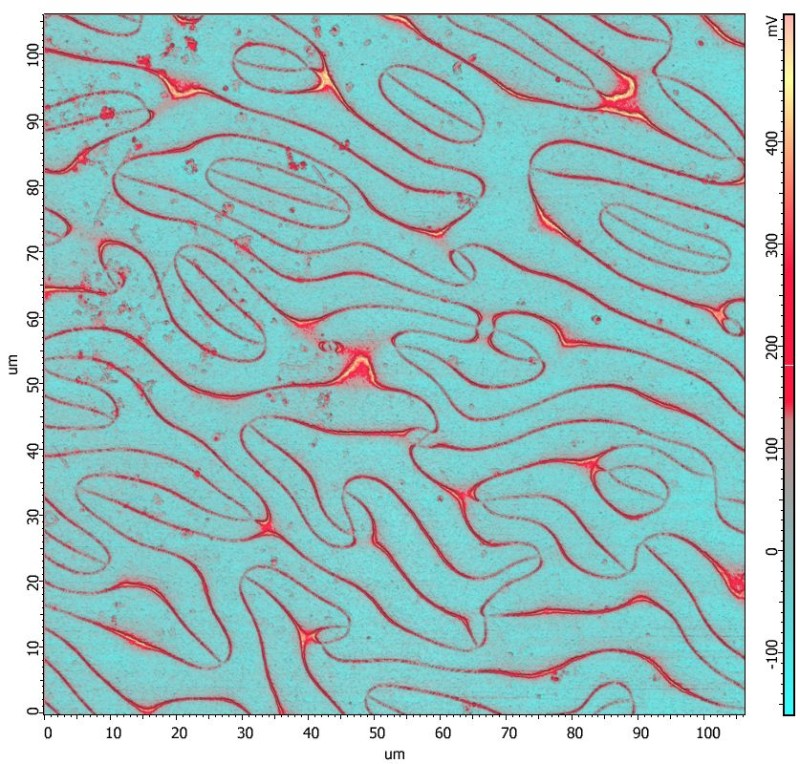

Ferroelectric Domains in ErMnO3

size: 106x106 um
SPM principle: Piezoresponse Force Microscopy
ferroelectric_domains_in_ermno3_2d
2D View

size: 106x106 um
