Tin-Bi alloy

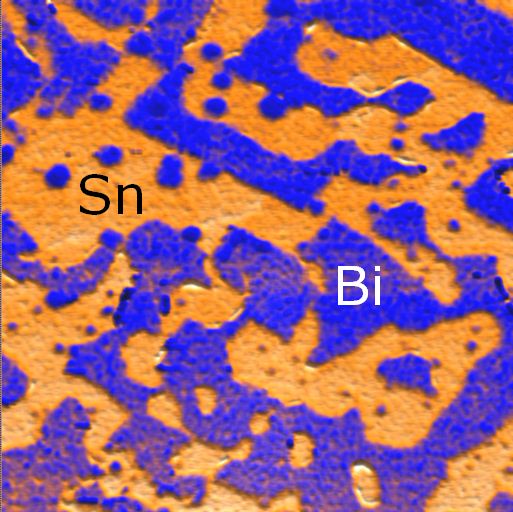

The Elastic Modulus map is a unique capability for stiff materials with AFM cantilever. Areas corresponding to Bismuth (32 GPa, light-blue color) and Tin (50 GPa, melon color) are clearly identified. The mechanical proper¬ties map corresponds well with the Surface Potential image.


KPFM
KPFM
KPFM


Topography
Topo


Young's Modulus
Tin-Bi alloy

size: 10x10 um
