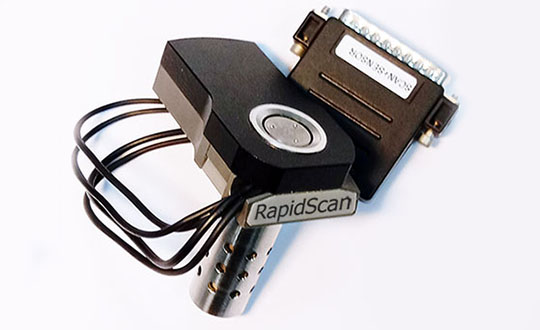

RapidScan™ technology is a combination of mechanical design and high-end digital electronical solutions which allows to speed up your AFM by an order of magnitude keeping 90 µm in-plane scaninng range. All three access are equipped with high-precision closed-loop capacitive sensors
90×90×0,5 µm
image of collagen fibers
captured @ 1 & 10Hz scanning rates

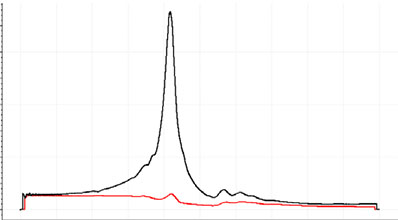

Active Resonance Damping applied via 4-order digital IIR filtering allow to operate 90 µm scanner at speeds up to 50 Hz without side-ringing
| Parameter | Value |
| Travel range (XY/Z), μm | 90×90×4 ±10% |
| Closed loop sensors (XYZ) | Capacitive |
| Sample size, ⌀ mm | 15 |
| Vertical noise floor, pm | 30 |
| XY position noise (Closed Loop), nm | 0,1 |
| Nonlinearity, % | 0,1 |
| Resonance Frequency (XY/Z), kHz | 0,8/12 |
| Active resonance damping | Automatically tuned 4-th order IIR digital notch-filters |
